Brand Name : PAPA
Model Number : P307
Certification : CE certificate
Place of Origin : CHINA
MOQ : 1 set
Price : negotiable
Payment Terms : T/T or L/C at sight
Supply Ability : 80sets/month
Delivery Time : 25-30days
Packaging Details : wooden case
product name : Small Protein Bar Extruder Machine
application : protein bar/ energy bar/chocolate bar
output : 60-90pcs
Power : 0.8kw
machine weightweight : 180kg
machine size : 1856*500*1357mm
Package size : 2300*950*1300mm
voltage : 220V, 50hz / 60hz
Name : Energy Bar Machine
Automatic Small Protein Bar Machine / Energy Bar Production Line / Date Bar Maker Fruit Bar Making Extruder Manufacturer | |
Model | P307 |
Capacity | 40-60pcs/min |
Power: | 0.6kw |
Voltage | 380V/220V |
Dimension | 2250*560*1380mm |
Weight | 180kg |
Converter | Delta |
Application:
P307 protein bar extruder to make cookie bar
P307 bar extruder to make bar with chocolate enrober and cooling tunnel
Energy bar making by P307 extruder machine
Protein bar machine to make 3 rows bar with chocolate enrober and package whole line
✔ End-to-End Automation – From ingredient mixing to final packaging
✔ High Capacity – Produces 2,000–5,000 bars/hour (adjustable based on size)
✔ Flexible Formulations – Works with dates, nuts, seeds, chocolate, and more
✔ Food-Grade Materials – Stainless steel construction, easy to clean & maintain
✔ Precision Cutting – Uniform bar sizes with smooth edges
Parameter | Specification |
---|---|
Model | Papa P307 |
Production Speed | 2,000–5,000 bars/hour |
Bar Weight | 20–100g (adjustable) |
Power Supply | 380V / 50Hz (customizable) |
Machine Length | ~5m (full line) |
Control System | PLC + Touchscreen HMI |
Materials | 304 & 316 Stainless Steel |
Mixing – Ingredients (dates, nuts, sweeteners) are blended uniformly.
Forming – The mixture is pressed into a continuous sheet.
Cutting – Precision blades cut bars into desired shapes (rectangular, square, etc.).
Cooling (Optional) – For chocolate-coated or layered bars.
Packaging – Automatic wrapping in foil, film, or flow packs.
Date Energy Bars
Nut & Seed Bars
Granola Bars
Protein & Fitness Bars
Chocolate-Coated Snack Bars
✅ Higher Output – 3x faster than manual/semi-auto machines
✅ Lower Waste – Precise ingredient dosing reduces material loss
✅ Easy Customization – Adjust thickness, shape, and recipe easily
✅ Hygienic Design – Complies with FDA, CE, ISO standards
![]() |

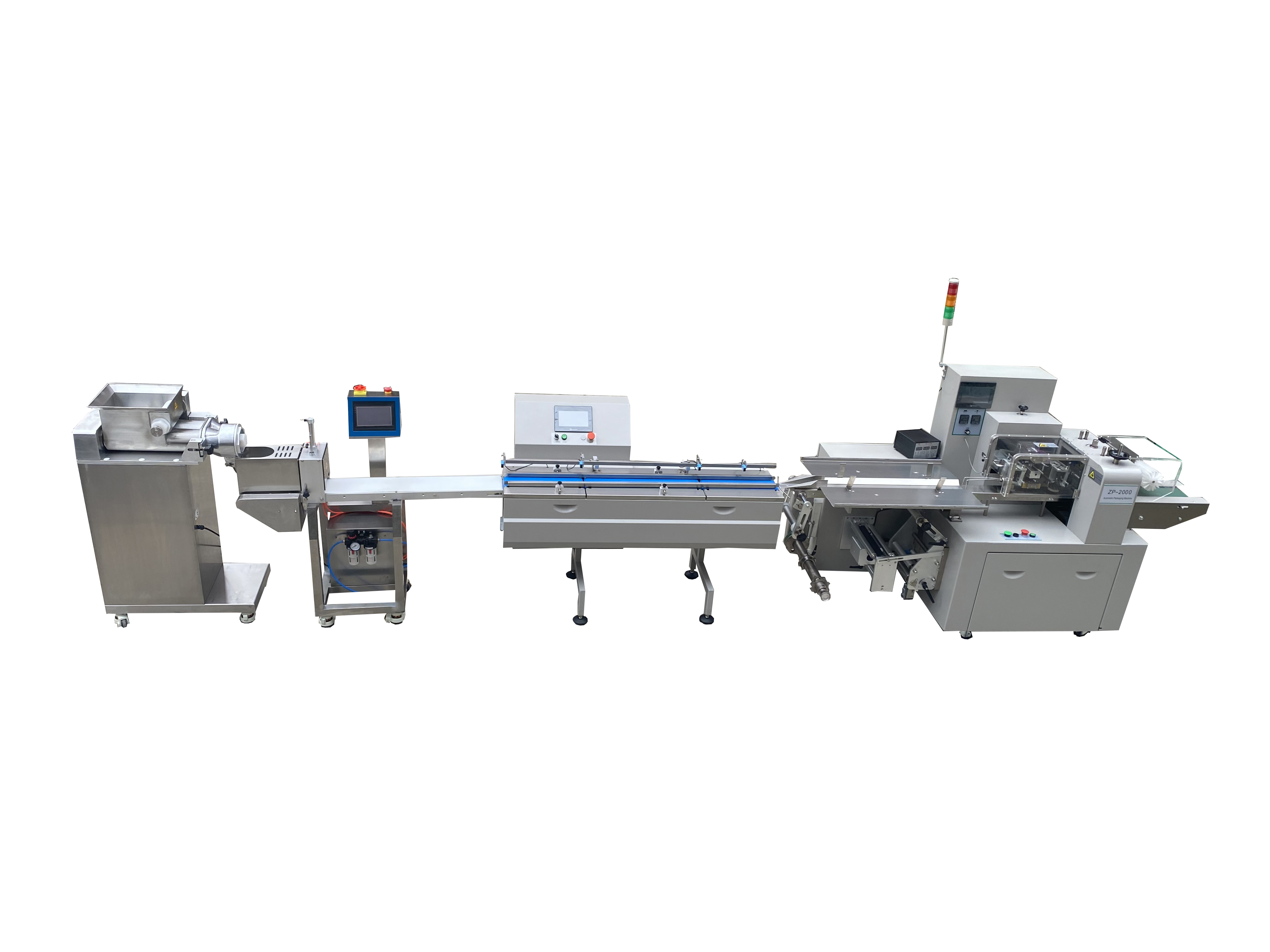

Papa P307 Date Bar Production Line s Images |
